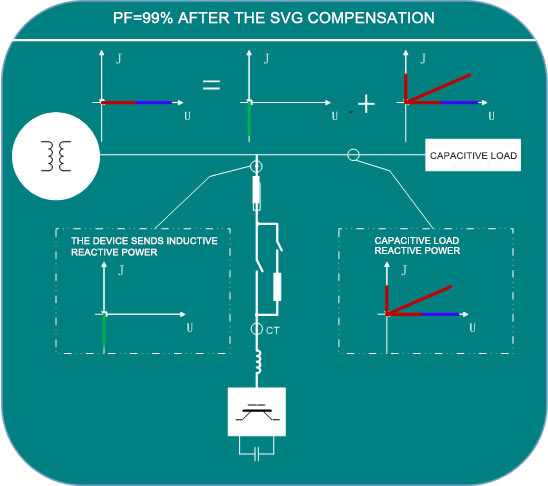

-SVG statistic reactive compensator detects the load current in real time through the external current transformer, it calculates, abstracts and decomposes the reactive current component through DSP and drives the internal IGBT through the PWM signal so as to make the current transformer to produce a reactive current satisfying the requirements and realize the continuous dynamic reactive compensation.
Performance characteristics:
Quick response: complete compensation time＜10ms;
Significant effect: PF≥99%;
Superior performance: continuous, smoothed and linear compensation;
Component concept: can replace the capacitance of the relative capacity;
Have the reactive controller with itself: no other controller is necessary when building SVG inside.
